Is the strength of composite panels made by attaching titanium to a silical plate safe?
Won’t it come off soon?
Willn’t the silical plate crack and fall apart?
Won’t it dent when I put something on it?
What will happen if I drop something on it?
These are just a few of the questions you may have under actual use.
So, we tested the product in actual use, assuming the harshest floor.
Please take a look.
It is quite strong.
＝Video of test status Youtube ＝
Also, our engineers who develop, test and manufacture these products.
We call them “metal make up artist 金属化粧師”.
What kind of people are we, the employees of Toyo Stainless Steel Polishing & Grinding Co.
What kind of company is Toyo Stainless Polishing & Grinding Industries Co.
To answer these questions, we have created an “Image Book”.
Please take a look.
Here is the test report of titanium composite panels manufactured by the method of making titanium/silica composite panels that I sent you in April.
The following is a test report of titanium composite panels manufactured using the method of making titanium/silica composite panels.
For more details, please refer to the column: [Introduction to simple panel construction] Top-grade golden titanium panels.
[Easy Panel Installation] Highest Quality Golden Titanium Panel
See also.
contents
Materials and bonding configurations
Material composition: ND20 titanium 1.0 mm + silical plate 6.0 mm
Surface finish: Titanium lag
Primer: Cationic sealer
Adhesive: Elastic mastic type adhesive

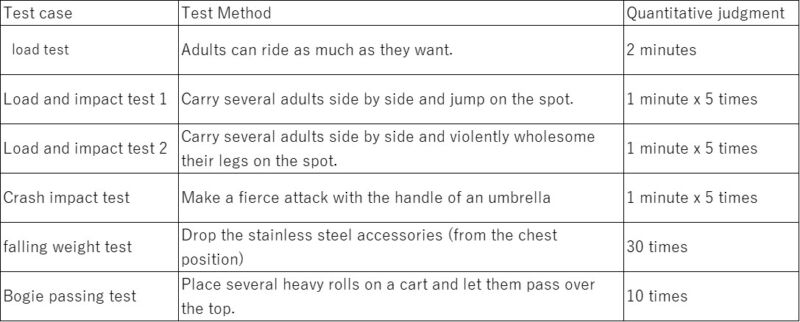

test case

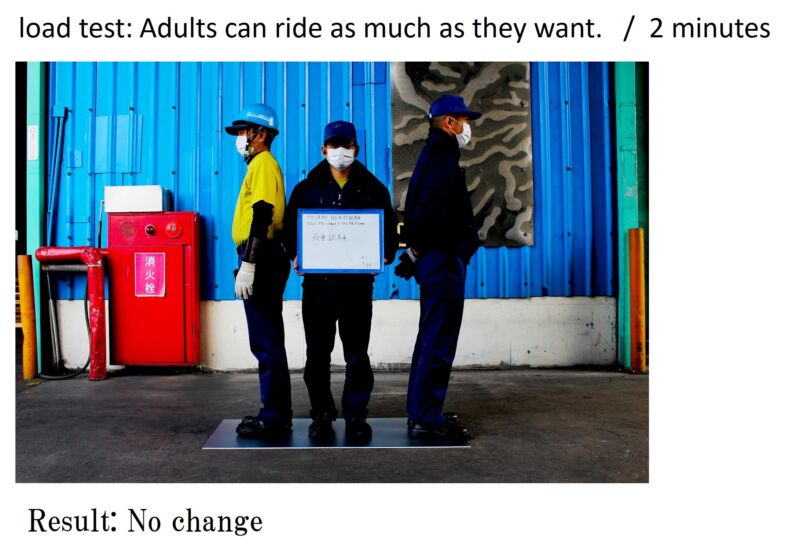

①load test

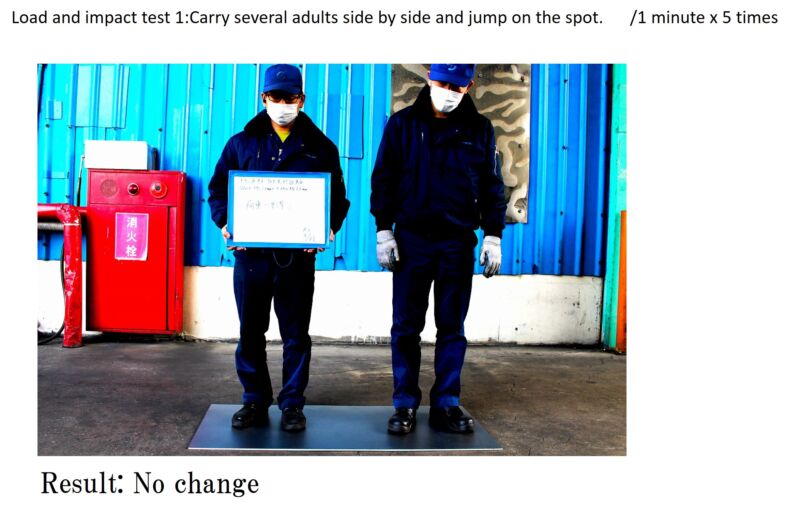

②Load and impact test 1

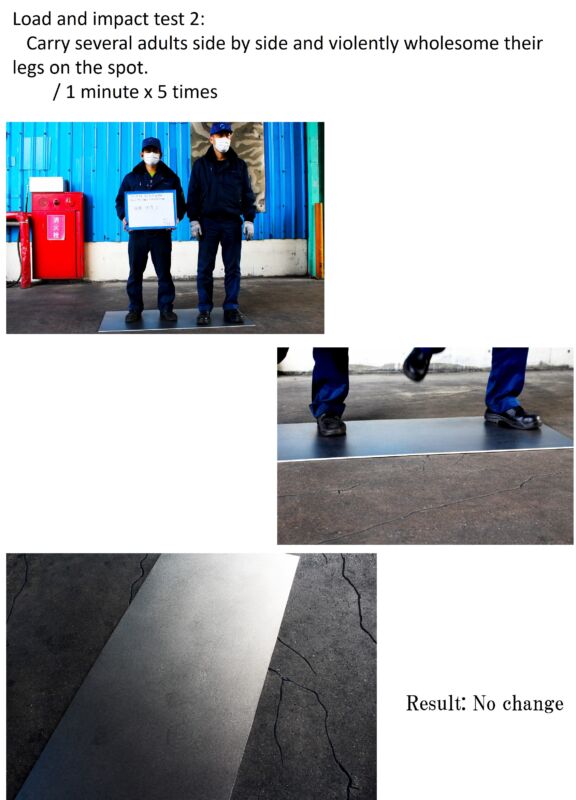

③Load and impact test 2

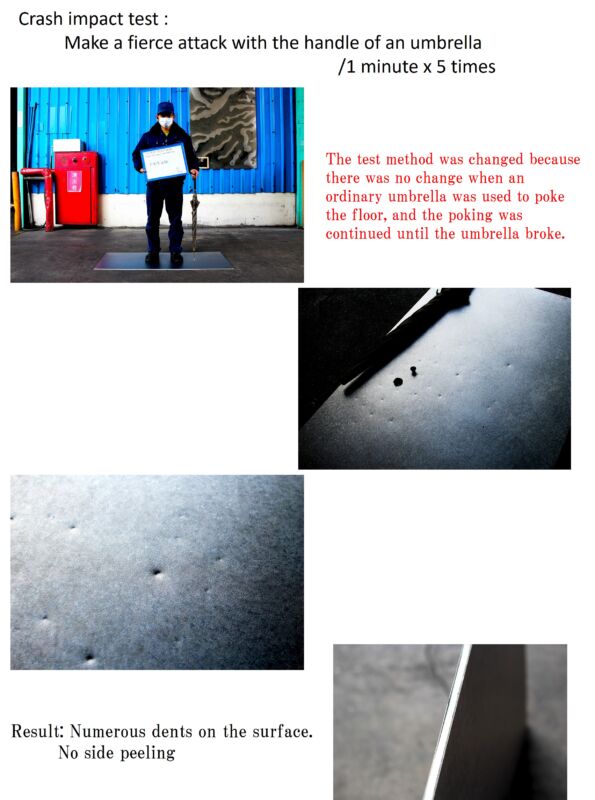

④Crash impact test

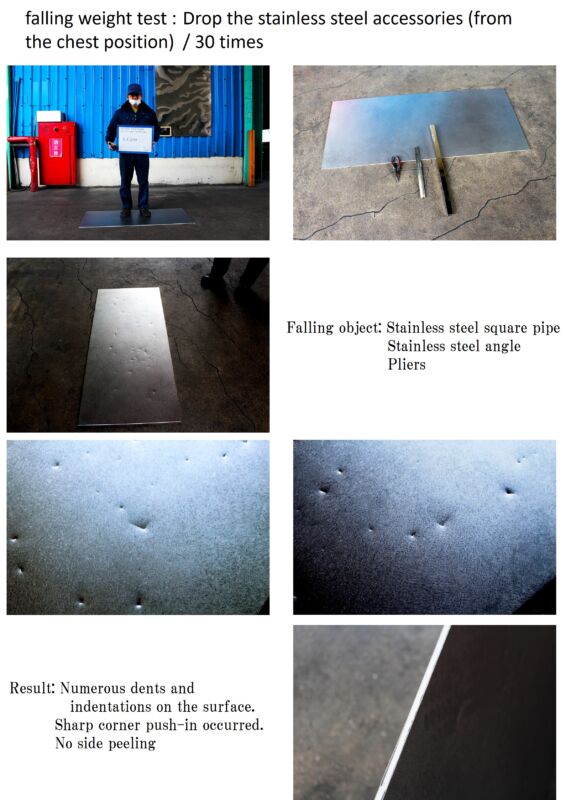

⑤falling weight test

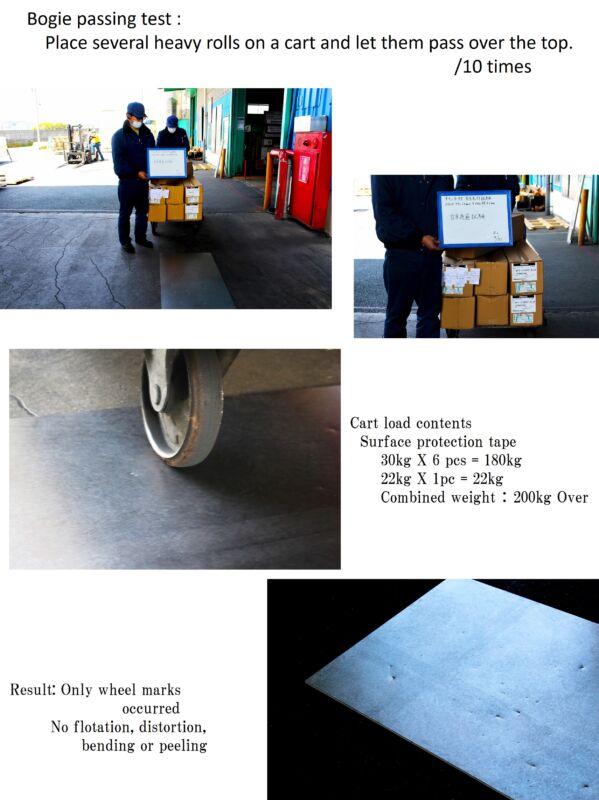

⑥Bogie passing test

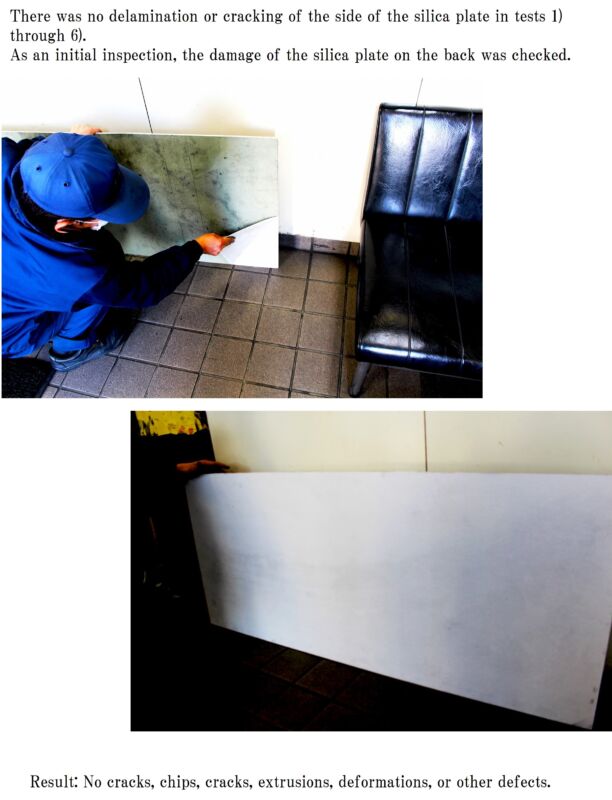

〇initial inspection
〇Finally
(1) Adhesive strength
The newly developed configuration showed sufficient durability against various impacts and loads.
(2) Overall strength
It was confirmed that even if the surface was dented and pushed into a sharp angle by blows and impacts to the surface, the calcium silicate plate did not crack and break.
＜Video of the test>
